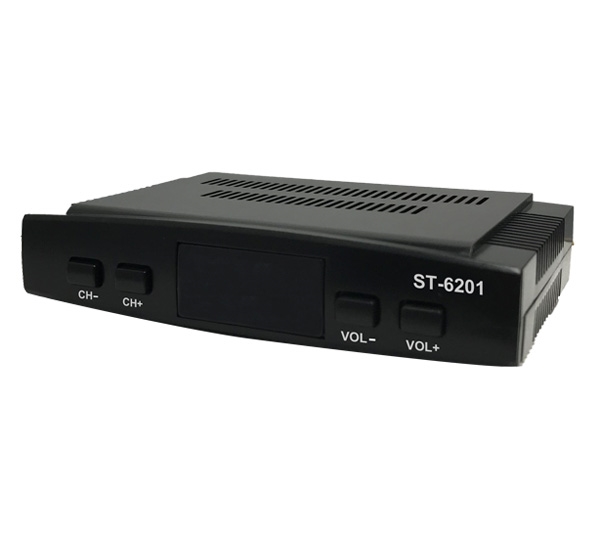

ST-6201 DVB-T receiver is developed to adapt terrestrial digital signal. It's mainly applied in home entertainment, surveillance control, hotel Digital Signage, shops etc. And it is integrating MPEG-4 AVC/H.264 decoding to convert terrestrial signal into HD output. Order
● Support receiving DVB-T signal
● Supports scan of Auto,Blind, Manual
● Support HD output
● Support AES encrypt
● Software upgrade via mini USB port

TRANSMISSION STANDARDS
DVB-T, MPEG-4,H.264
DVB-T INPUT/DEMODULATION
Connector Type Female Type
Input Frequency 100~860MHz
Signal Input Level  -79.5dBm (MAX)
Demodulation Type QPSK,16QAM,64QAM
HDMI output connecter
Format HDMI 1.3a
AUDIO/VIDEO PROCESSING
Video decompression MPEG-2 MP@HL, MPEG-1 Decoding,MPEG-4 ASP@L5 HD resolution,H.264 MP&HP@L4,HW JPEG decoding
Resolving rate PAL-25 frame@720*576,NTSC-30 frame@720*480
Signal compatibility Support conversion for different video formats
Video Format 4:3,16:9,By Pan & Scan and Letter Box conversion
Audio Decompression MPEG-1 Layer I/II, MPEG-2 Layer I/II
Audio Output Mode Stereo, Mono,R/L
DATA SERVICE PORT
Connector mini USB
Data Protocol USB2.0 interface
File Management System NTFS,FAT32
File Format wma,mp3,mp4,avi,jpg,jpeg,bmp,img
POWER SUPPLY
Adapter OUTPUT :DC12V/1.0A, INTUPT :100-240VAC 50/60Hz(Will be subject to actual configuration)
Power Consumption Max. 10W
PHYSICAL CHARACERSTICS
Size (W x D x H) 13x8.5 x2(cm³)
Net Weight 0.25kg
If you are interested in these products, please leave the relevant staff will contact you quickly.
