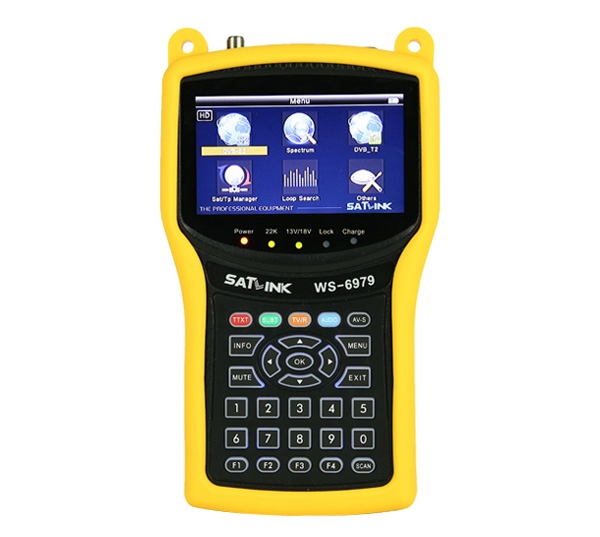

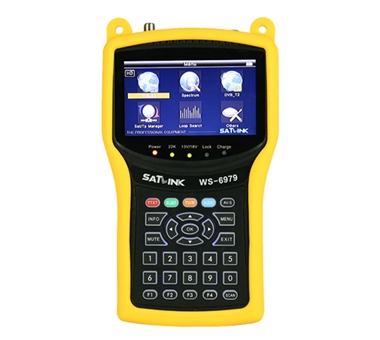

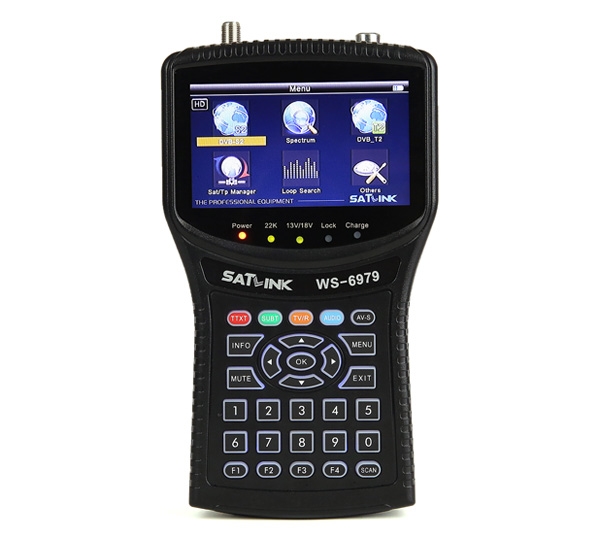

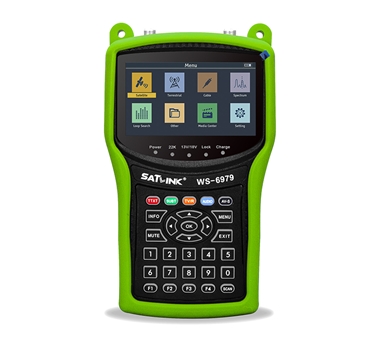

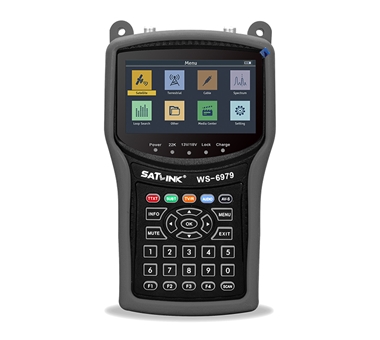

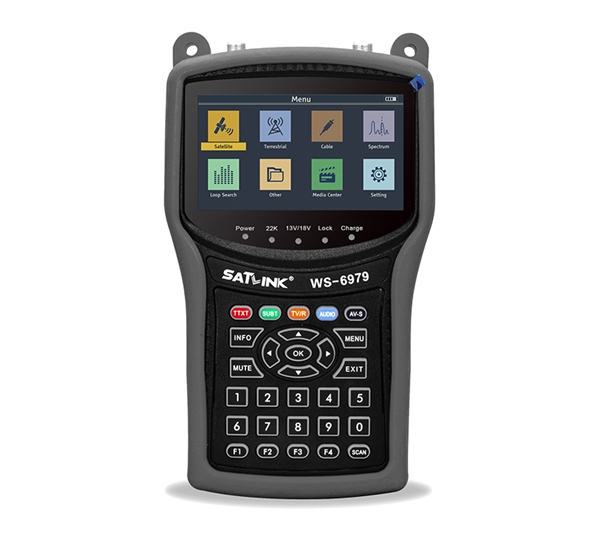

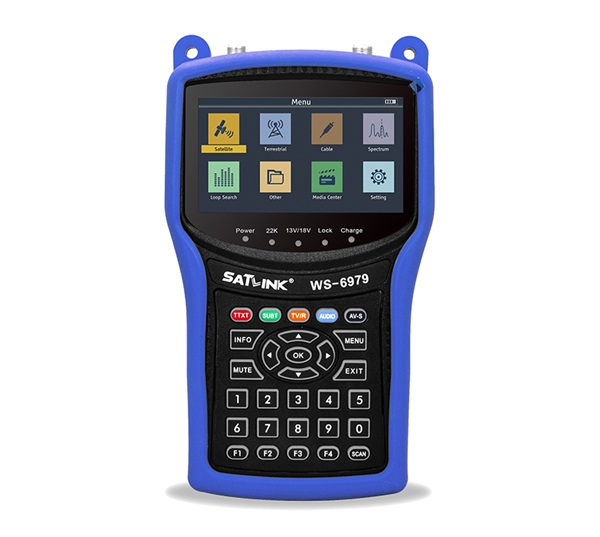

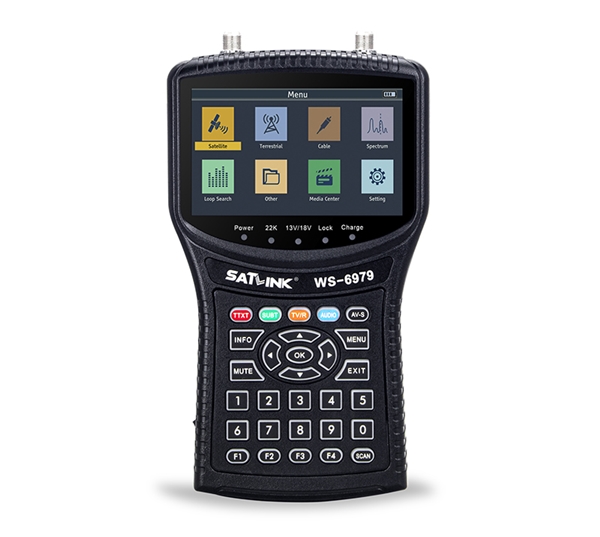

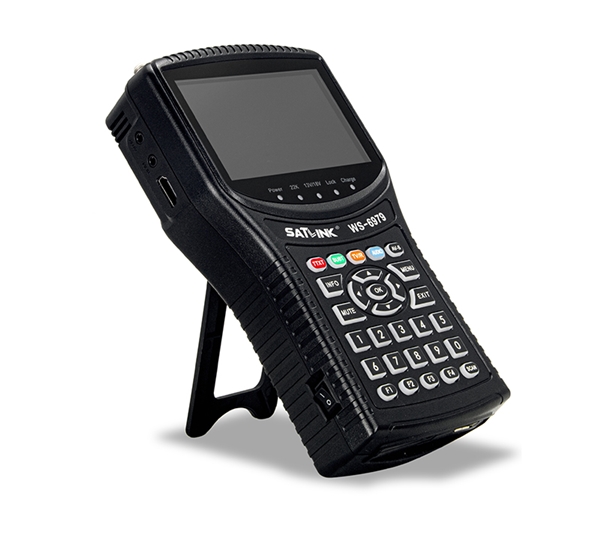

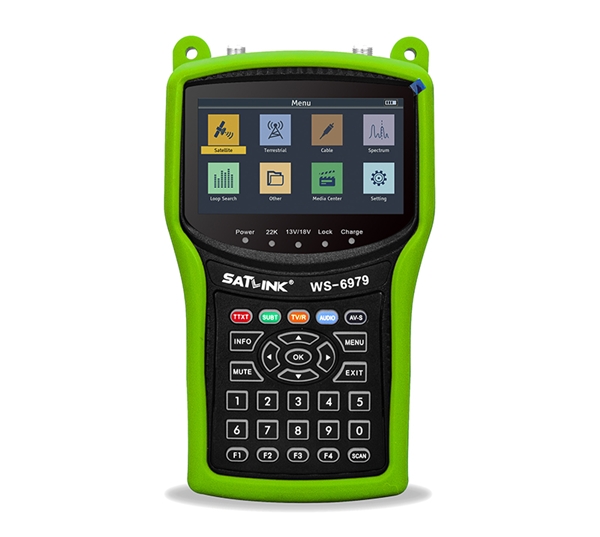

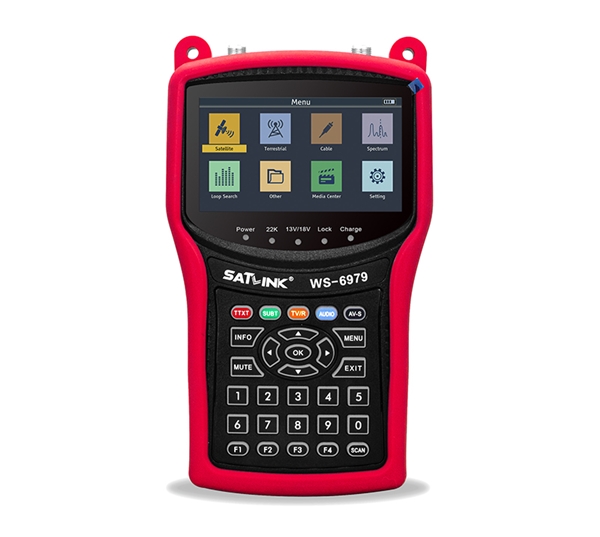

WS-6979 WS-6979 is a DVB-S/S2/T/T2/C and MPEG-2/4 H.265 compliant handheld combo meter. With its compact size, light weight, intuitive user’s interface, long battery operational hours and rich feature set, the meter provides all functions needed for installation and verification of digital Satellite TV service attenna signal to residential homes or multi-dwelling units. Order
● 4.3 Inch High Definition TFT LCD Screen
● Fully DVB-S/S2/T/T2/C, MPEG-2/MPEG-4 compliant
● MPEG-2/MPEG-4, H.265 Hardware decoding
● Digital meter for signal strength and quality
● Constellation analyzer
● Spectrum analyzer
● Supports scan of Auto,Blind,Manual or NIT
● Sound and Light Alarm for Locking Signal
● Auto Calculate Angle of AZ ,EL
● Supports DISEQC 1.0/1.1/1.2 ,0/22kHz Tone
● Speaker Integrated
● Support both AV out and AV in
● LNB short protect
● 7.4V/3000mAh Li‐Ion Battery Included
● Software upgrade via USB port
● Easy to carry
TRANSMISSION STANDARDS
DVB-S2/S, DVBT/T2, DVB-C, MPEG-2, MPEG-4, H.265
SATELLITE INPUT/DEMODULATION
Connector Type F Type
Input Frequency 950 to 2150 MHz
Signal Input Level -65 to -25 dBm
Band Switch Control 22KHz
LNB Supply 13V/18V, IMax 400mA
Demodulation Type QPSK,8PSK,16APSK
Symbol Rate 2<Rs<45Mband(SCPC/MCPC)
DVB-T/T2 INPUT/DEMODULATION
Connector Type Female Type
Input Frequency 48 to 862 MHz
Signal Input Level -79.5dBm (MAX)
ANT Supply 5V, 12V/17V Imax 100mA
Demodulation Type QPSK,16QAM.64QAM,256QAM
LCD FEATURES
LCD Type TFT Transmissive
Number of Dots 480(RGB) x272
Active area (WxH) 95.04x53.86 mm²
AV output interface
Connector Type 3.5 mm jack
Video Output CVBS
Audio Output Stereo Audio L/R output
HDMI output connecter
Format HDMI 1.3a
AV input interface
Connector Type 3.5 mm jack
Video Input CVBS
Audio Input Stereo Audio L/R input
AUDIO/VIDEO PROCESSING
Video decompression MPEG-2 MP@HL, MPEG-1 Decoding,MPEG-4 ASP@L5 HD resolution,H.264 P&HP@L4,HW JPEG decoding
Resolving rate PAL-25 frame@720*576,NTSC-30 frame@720*480
Signal compatibility Support conversion for di§erent video formats
Video Format 4:3,16:9,By Pan & Scan and Letter Box conversion
Audio Decompression
MPEG-1 Layer I/II, MPEG-2 Layer I/II
Audio Output Mode Stereo, Mono,R/L
DATA SERVICE PORT
Connector USB
Data Protocol USB2.0 interface
File Management System NTFS,FAT32,FAT16
File Format wma,mp3,mp4,avi,jpg,jpeg,bmp,img
POWER SUPPLY
Li‰Ion Battery 7.4V/3000mAh(The machine behind labeling shall prevail)
Adapter OUTPUT :DC12V/1.5A, INTUPT :100-240VAC 50/60Hz(Will be subject to actual configuration)
Power Consumption Max. 10W
PHYSICAL CHARACERSTICS
Size (W x D x H) 9.5x15.5x4.5(cm³)
Net Weight 0.66kg
If you are interested in these products, please leave the relevant staff will contact you quickly.
