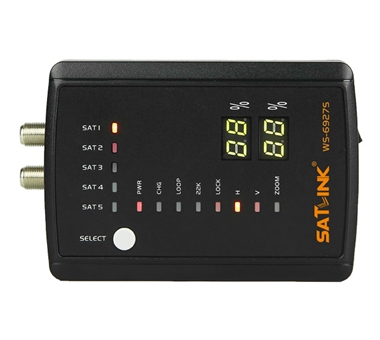

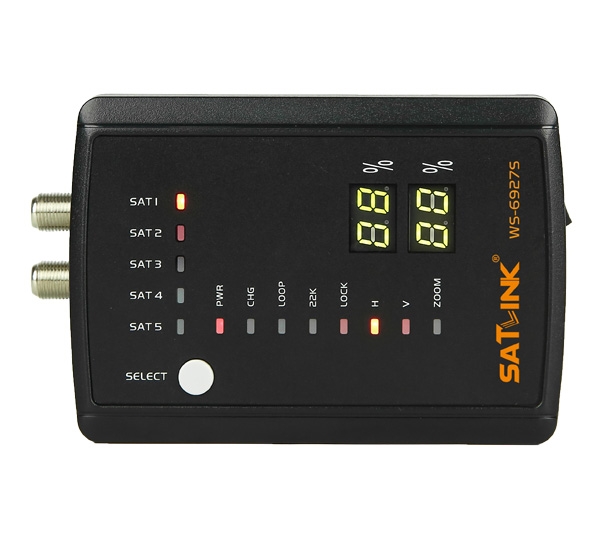

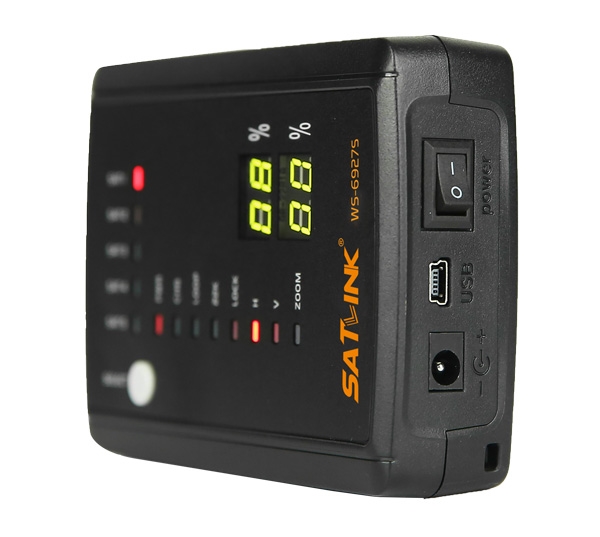

WS-6927S This product supports DVB-S/S2 signal standard. It is very small and easy to carry, and the capability of receiver signal is very strong。You don't have to carry extra power, monitor; It's very convenient to use. Order Manual

Key Features
Specifications

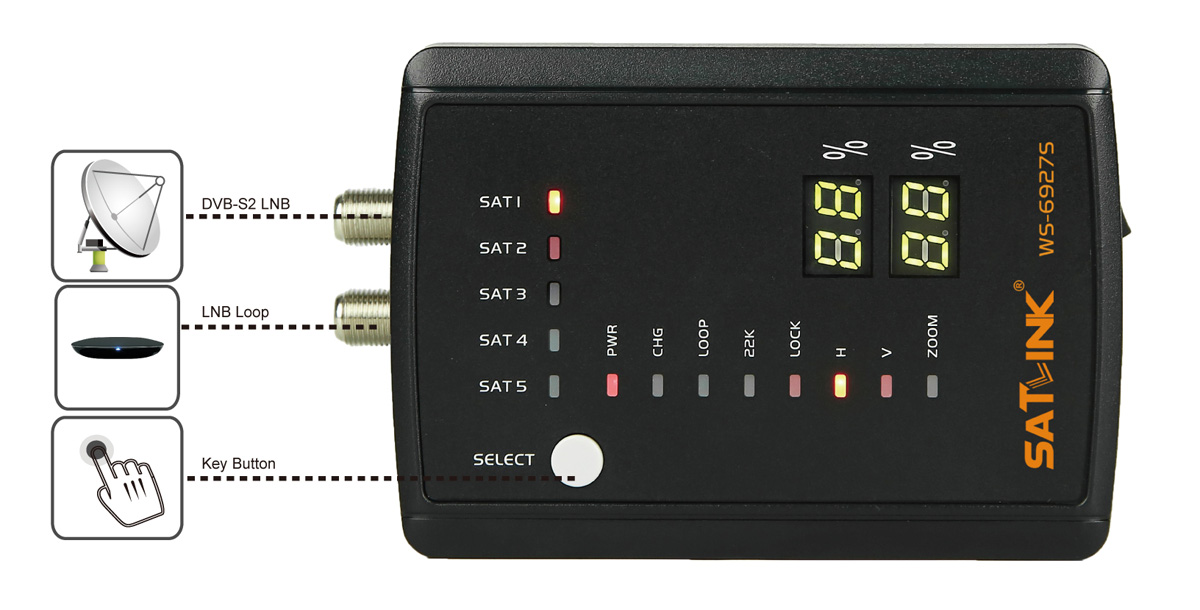

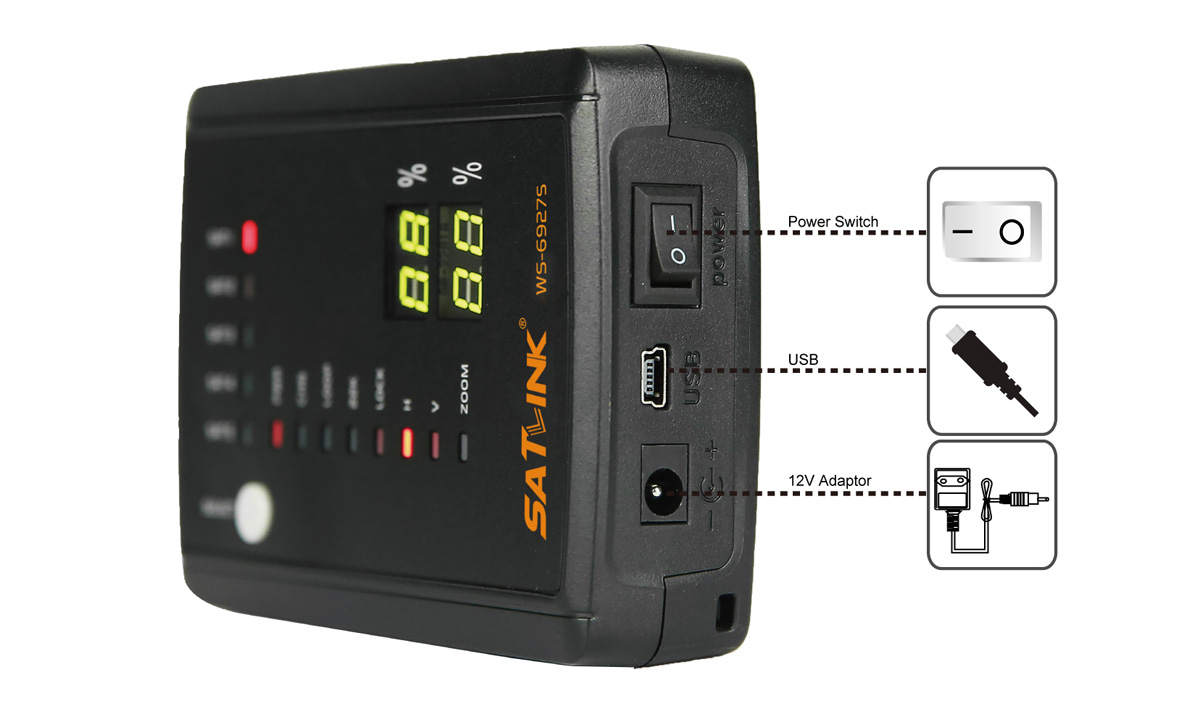

Functional Block Diagram

● Digital tube dispay for signal strength and quality
● Sound and Light Alarm for Locking Signal
● Beep Integrated
● LNB short auto protected
● Simple modification of database

TRANSMISSION STANDARDS
DVB-S/S2
SATELLITE INPUT/DEMODULATION
Connector Type	F Type
Input Frequency	950 to 2150 MHz
Signal Input Level	-65 to -25 dBm
LNB Supply	13V/18V,IMax300mA
Demodulation Type	QPSK/8PSK
Symbol Rate	2<RS<45M band (SCPC/MCPC)
DATA SERVICE PORT
Connector	USB
Data protocol	USB to RS-232
POWER SUPPLY
Li-ion Battery	7.4V/500mAh
Adapter	OUTPUT: DC12V/1A, INTUPT: 100-240VAC 50/60Hz
Power consumption	Max .5W
PHYSICAL CHARACERSTICS
Size (WxDxH)	8×13×3(cm³)
Net Weight	0.25kg
